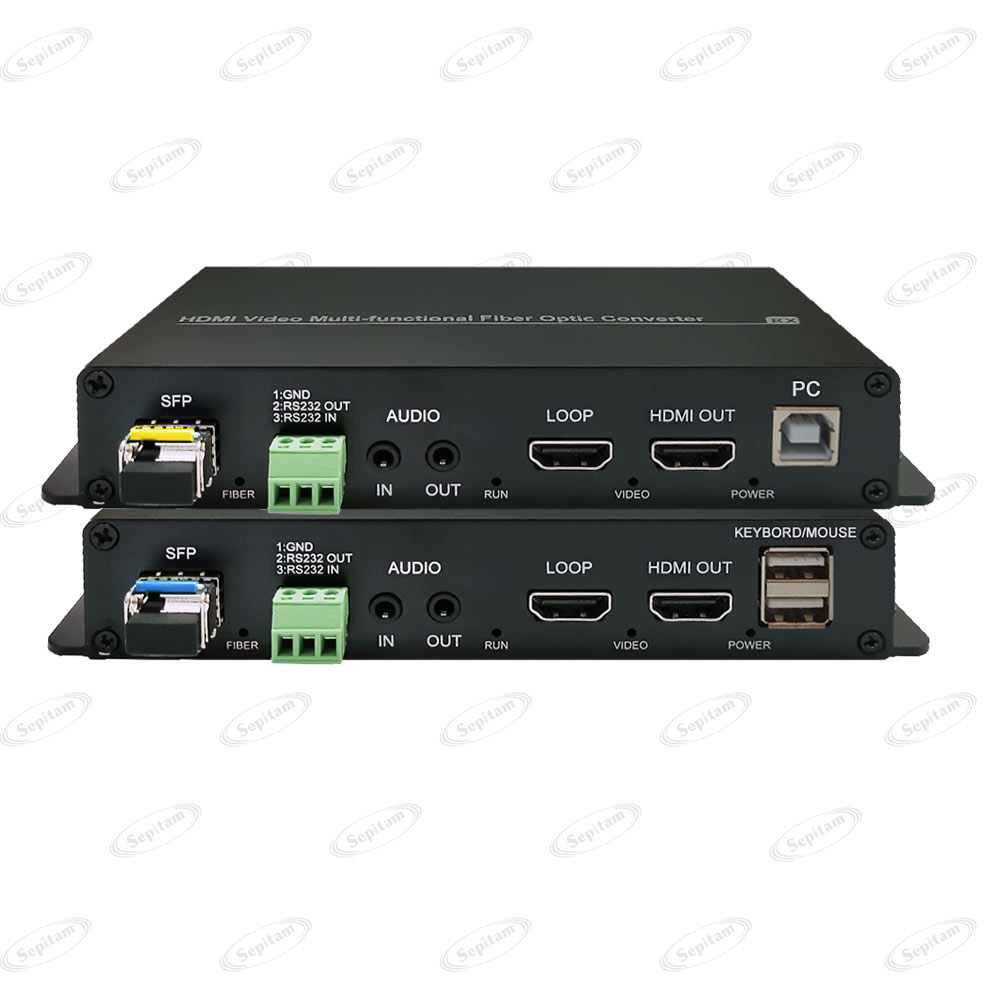

The Sepitam-1HD2U1bD1bA-T/R optical converter is composed of transmitter and receiver. The audio, usb, video and data output from the computer host (HD video signal source, HD DVD/DVR and other equipment) are extended to the remote user through 1 core optical fiber. Listen to the image and sound of the computer host in real time on the remote end and control the host at the transmitter.
| Product | Sepitam-1HD2U1bD1bA-T/R | Color | |
| Audio Interface | 3.5mm audio jack female | Optical fiber Interface | 1x 3G SFP Video Fiber Optic Module |
| USB interface | 1x USB Female Type B Connector 2x USB Female Type A Connector |
signal type | Keyboard and mouse |
| Data Interface | 1x bidirectional RS232 | Type of data | RS232 |
| Support Resolution | 1920x1080@24~60/P/I/ 1920x1200@60P/1280x720@60P/I |
Standards | HDMI 1.3; HDCP 1.2 |
| Wavelength | Uplink Ports | 3G Video Fiber Optic Module | |
| Input / output interface | 1x HDMI +1x HDMI Loop Back | Communication Standards | 1920x1080@24~60/P/I/ 1920x1200@60P/1280x720@60P/I :Rate SD: 270Mbps HD: 1.485Gbps FULLHD: 4.95G/S |
| Transmission Distance | Input Voltage | DC 12V1A | |
| Management | Unmanaged | Dimensions (WxHxD) | 167x113x28mm |
| Video input and output interface | HDMI | Design / Protection class | Metal Housing/ IP30 |
| Operating Temperature | 20̊C ~ 70 ̊C- |
Relative humidity (without condensation) | 95% ~ 0% |
| Mounting type | Wall mount, Stand Alone, Desktop | Warranty Period | 36Month |
